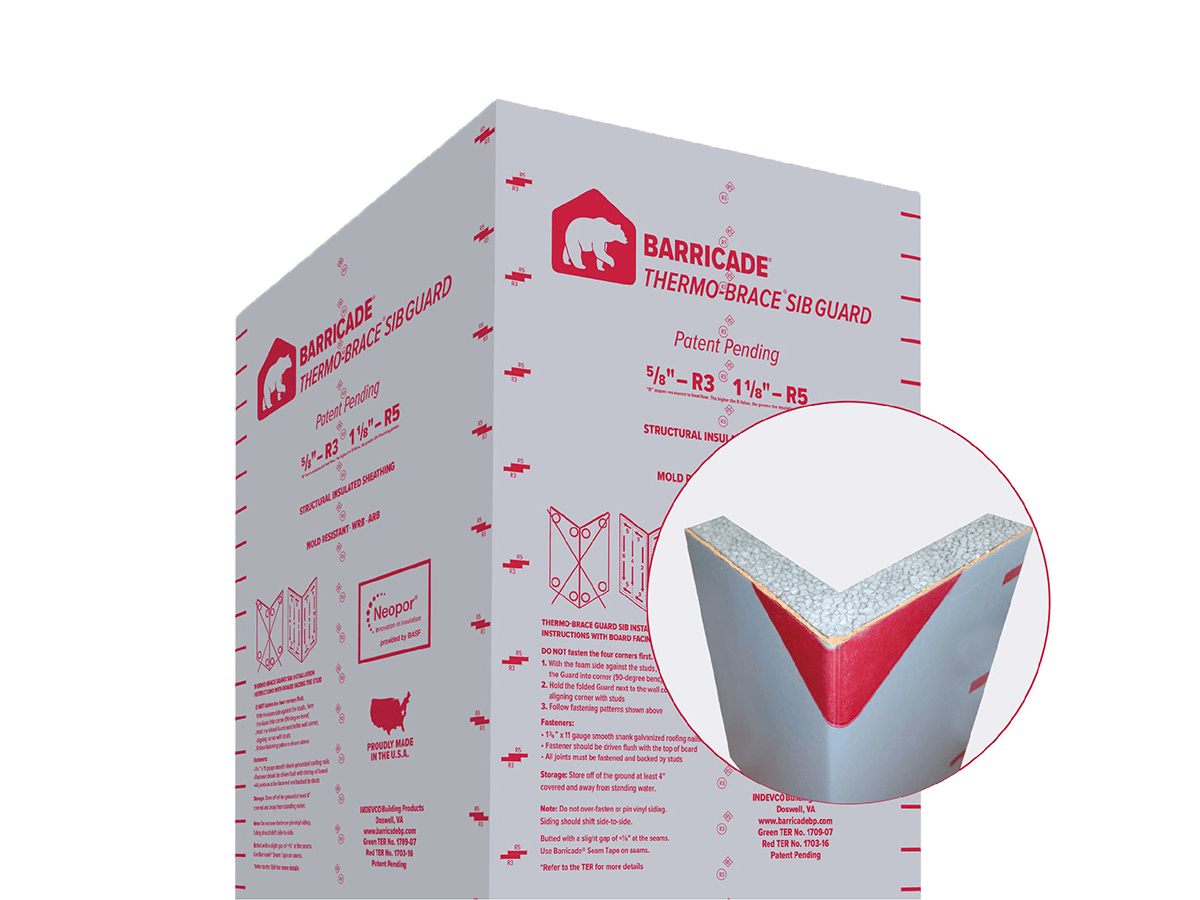

Enhance your building’s energy efficiency and structural integrity with Barricade® Thermo-Brace SIB Guard. This insulated continuous corner solution is designed to provide superior thermal protection and airtight sealing at critical junctions, reducing heat loss and preventing air infiltration. Easy to install and highly durable, Thermo-Brace SIB Guard ensures long-lasting performance and contributes to a more energy-efficient, comfortable living environment. Choose Barricade® for innovative solutions that deliver outstanding quality and reliability.
STOPS AIR LEAK & MOISTURE PENETRATION AT CORNERS
EASIER INSTALLATION FOR WINDOWS, SIDING & FLASHING
SAVE TIME AND MONEY FOR BUILDERS
Benefits
- Only Wrappable Structural Panel with Rigid Foam Insulation
- Replaces need to flash corners
- Provides Continuous Insulation
- Stops air leaks and moisture penetration at corners
- Easy install with nail markings labeled on panel
- Easier installation of windows, siding and flashing
- Maintains a better thermal break over the studs
- Hinge feature on panel allowing easy installation around the corner
- 32” Wings on each side to hit two studs
- Lays Flat during shipment
- Available in R3 and R5 Continuous Insulation
Specifications
Technical Certifications
Green: TER 1709-07
Red: TER 1703-16
Composition
Barricade® Thermo-Brace™ SIB Guard with BASF Neopor® GPS
Standard Sizes
R3 65” x 96”
R3 65” x 120”
R3 65” x 108”
R5 66 1/16”x 96”
R5 66 1/16”x 108”
R5 66 1/16”x 120”
Sheets/Pallet
R3: 70
R5: 40
Thickness
R3: 5/8”
R5: 1 1/8″
Fasteners
Foam Inward:
R3: 1 3/4″ x 11-ga. smooth-shank roofing nail
R5: 1 3/4″ x 11-ga. ring-shank roofing nail
Introducing: Thermo-Brace® GUARD
Patent-pending Barricade Thermo-Brace GUARD is an energy-efficient, structural sheathing that wraps around the corner of a structure, creating a complete enclosure that joins two separate walls into one continuous unit, while providing structural, WRB, and AIB benefits. Thermo-Brace GUARD stops air leaks and moisture penetration at corners and eliminates the need for corner flashing, saving time and money for builders, architects, contractors, and homeowners.
Available in continuous insulation versions R3 and R5.
Complete the Structural Sheathing System with these related products
Barricade® Construction Seam Tape
Barricade® Flash Conform™
Barricade® Flash Extreme™
Barricade® Flash Ulti™
Barricade® Flash Right™
